Initial Exploration Model
Model Credits: A26 on Thingiverse
Commission Small Batch Production
Modifications made to model:
- two added locking tabs for mainspring winding
- Integrated feet within base for stability
- Encapsulated mainspring design
- Mainspring made thicker and given more turns
- Modified outer geometry for ratchet winding mechanism
- Integrated feet within base for stability
- Encapsulated mainspring design
- Mainspring made thicker and given more turns
- Modified outer geometry for ratchet winding mechanism

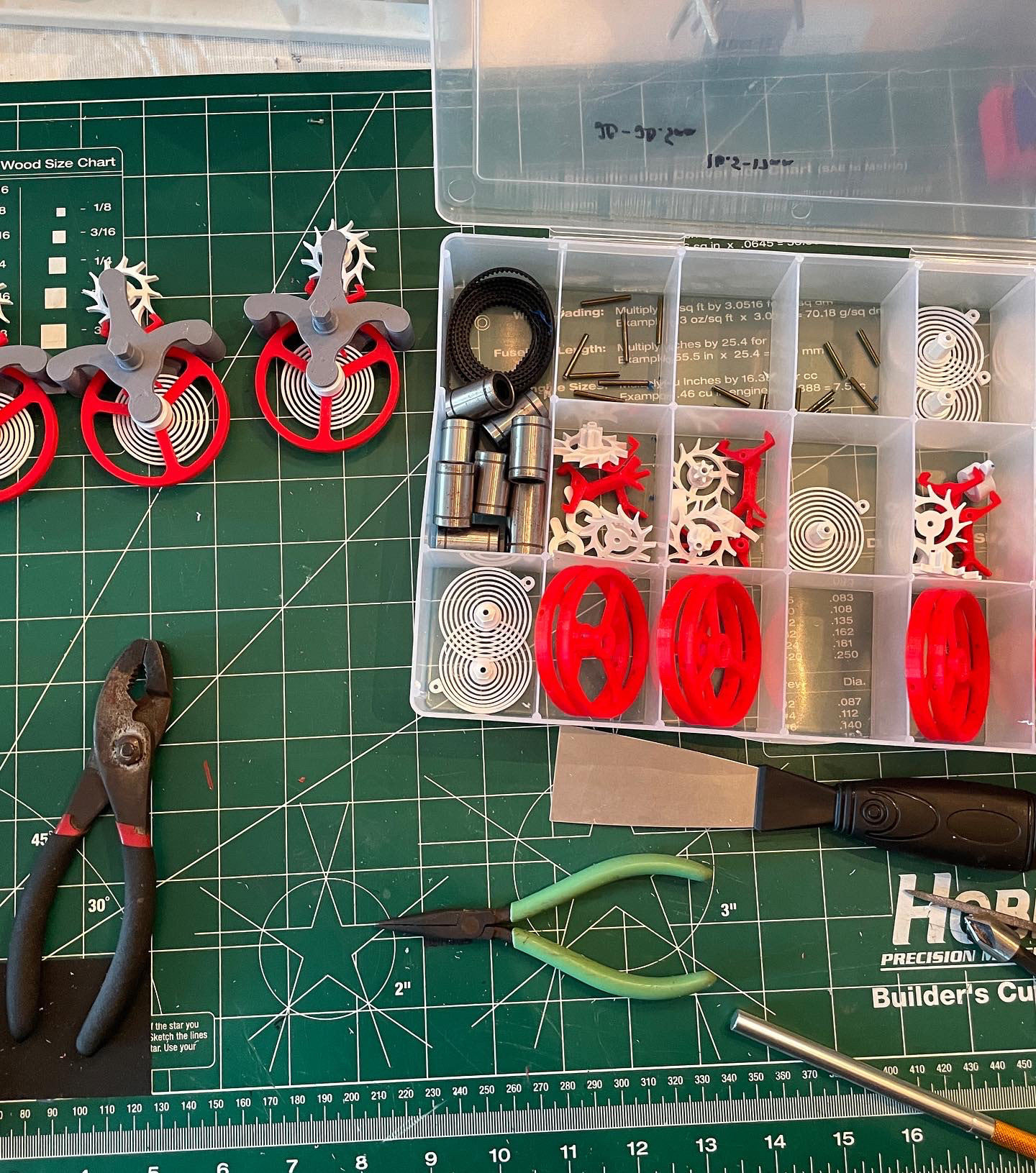

Gyrotourbillon Model Exploration
Design originally made by NOP21 & Hoshiimiki on Thingiverse
My modifications to the design:
- Adapters for linking the base of NOP21’s design
to Hoshiimiki’s gyrotourbillon
- Gears redesigned for a more stable gear ratio
- Inner mainspring barrel redesigned to fit shim
stock
- Pallet fork redesigned for more consistent
locking and unlocking from the escape wheel
- Escape wheel teeth redesigned for consistency and
reliability
- Slight modifications made to frames for fitting
redesigned parts
