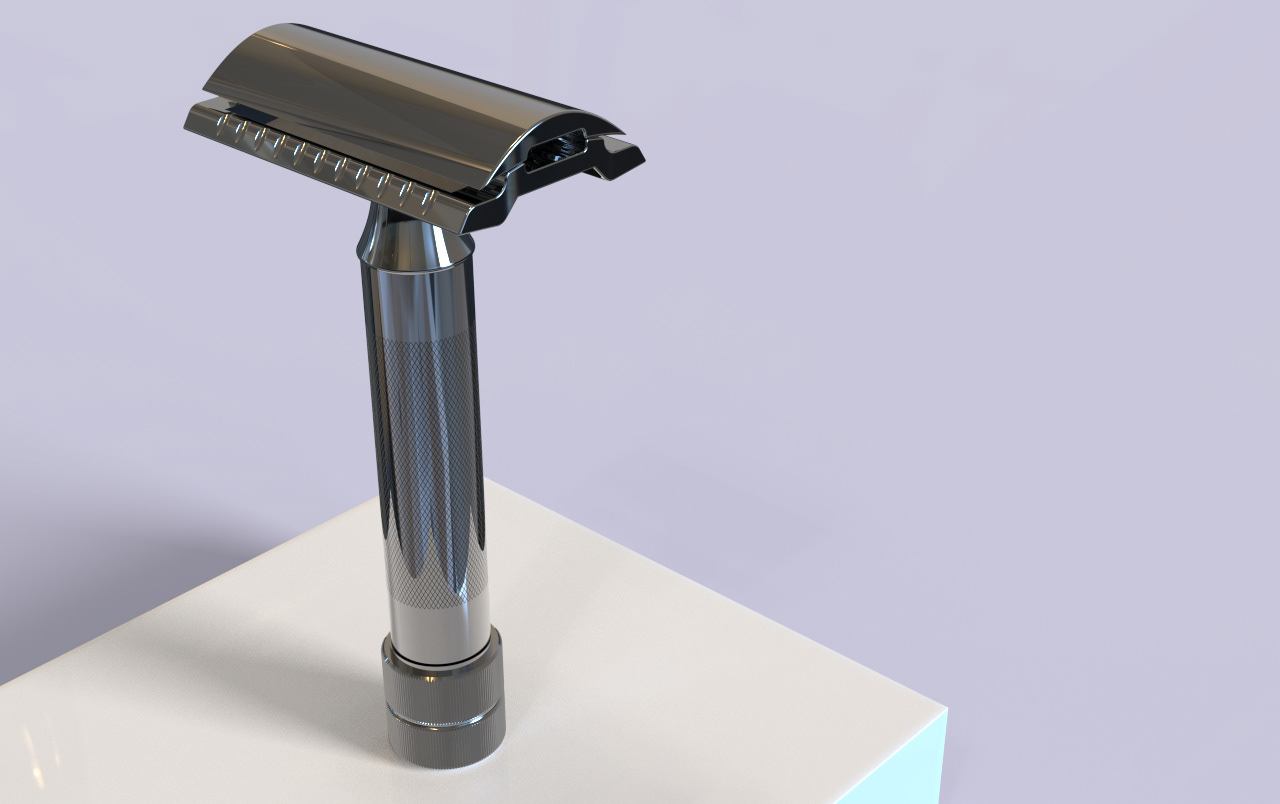

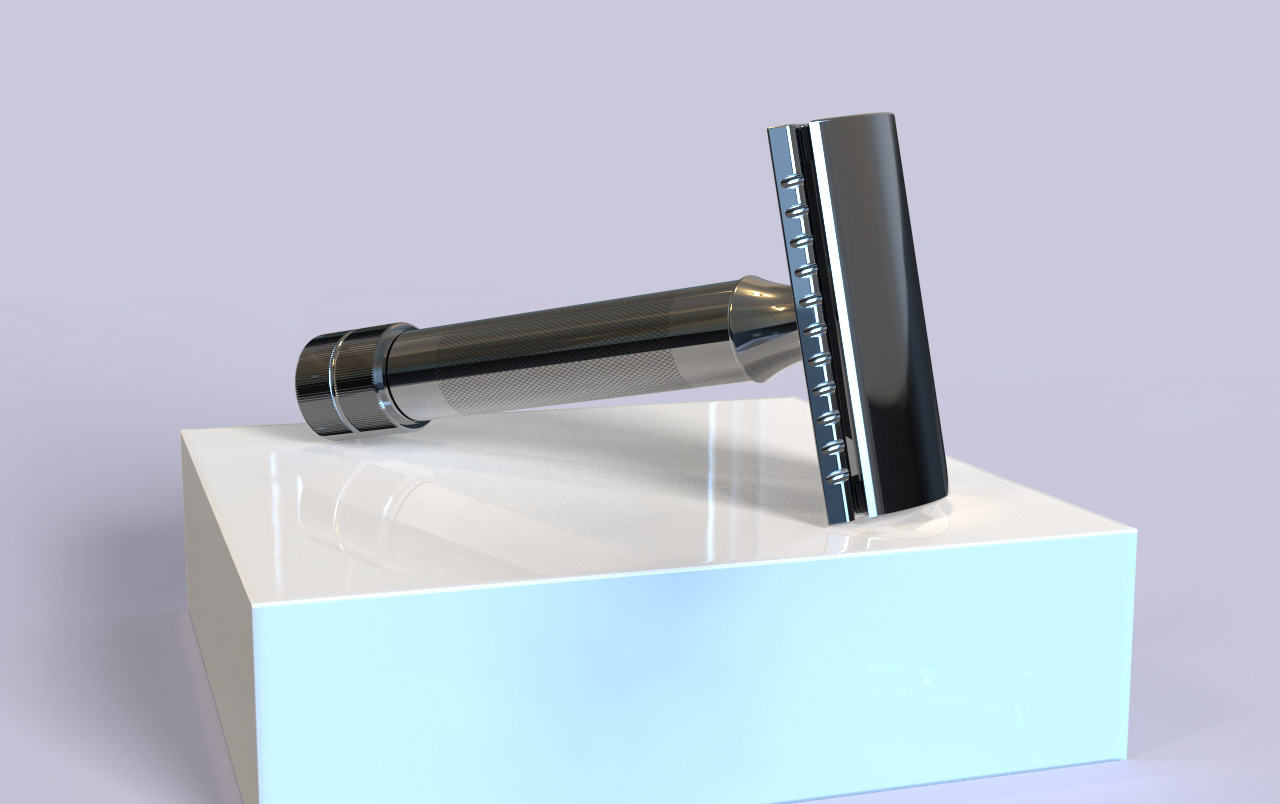

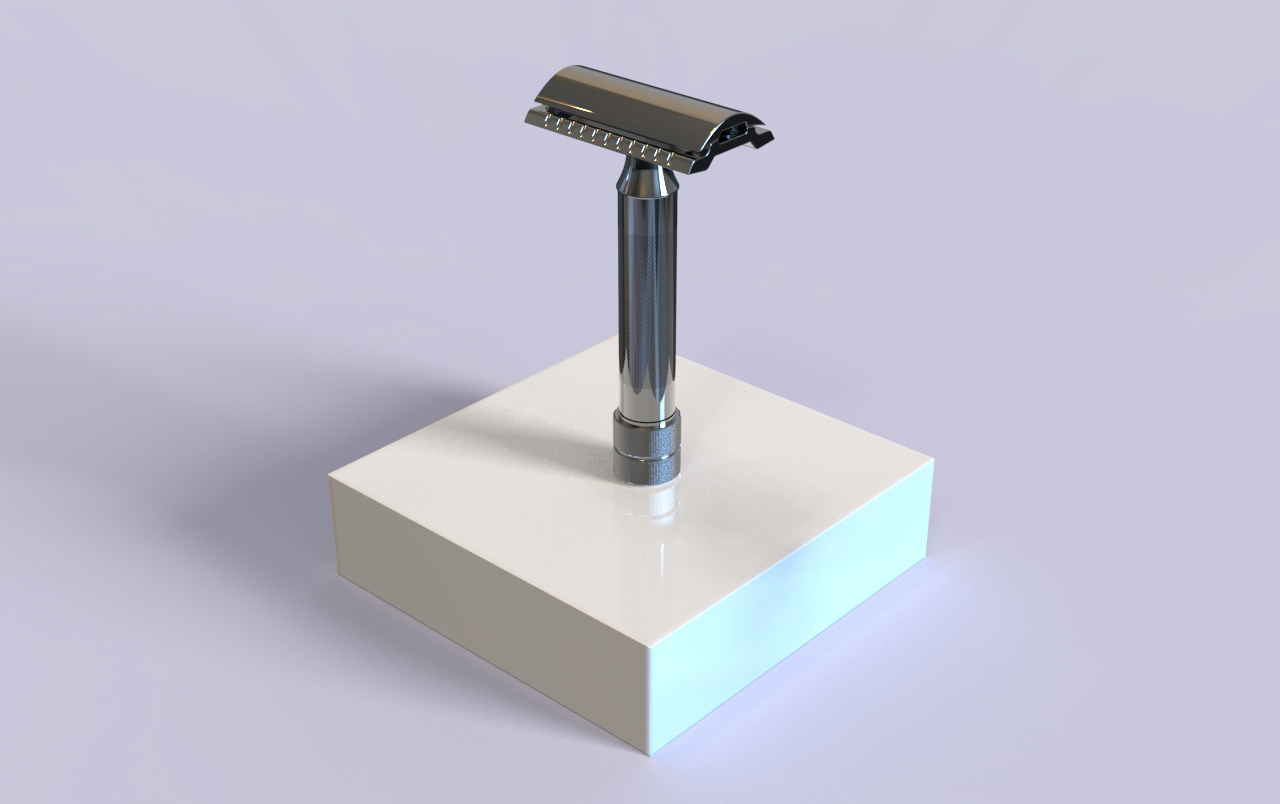

My Chosen Object: Merkur MK34C Safety Razor

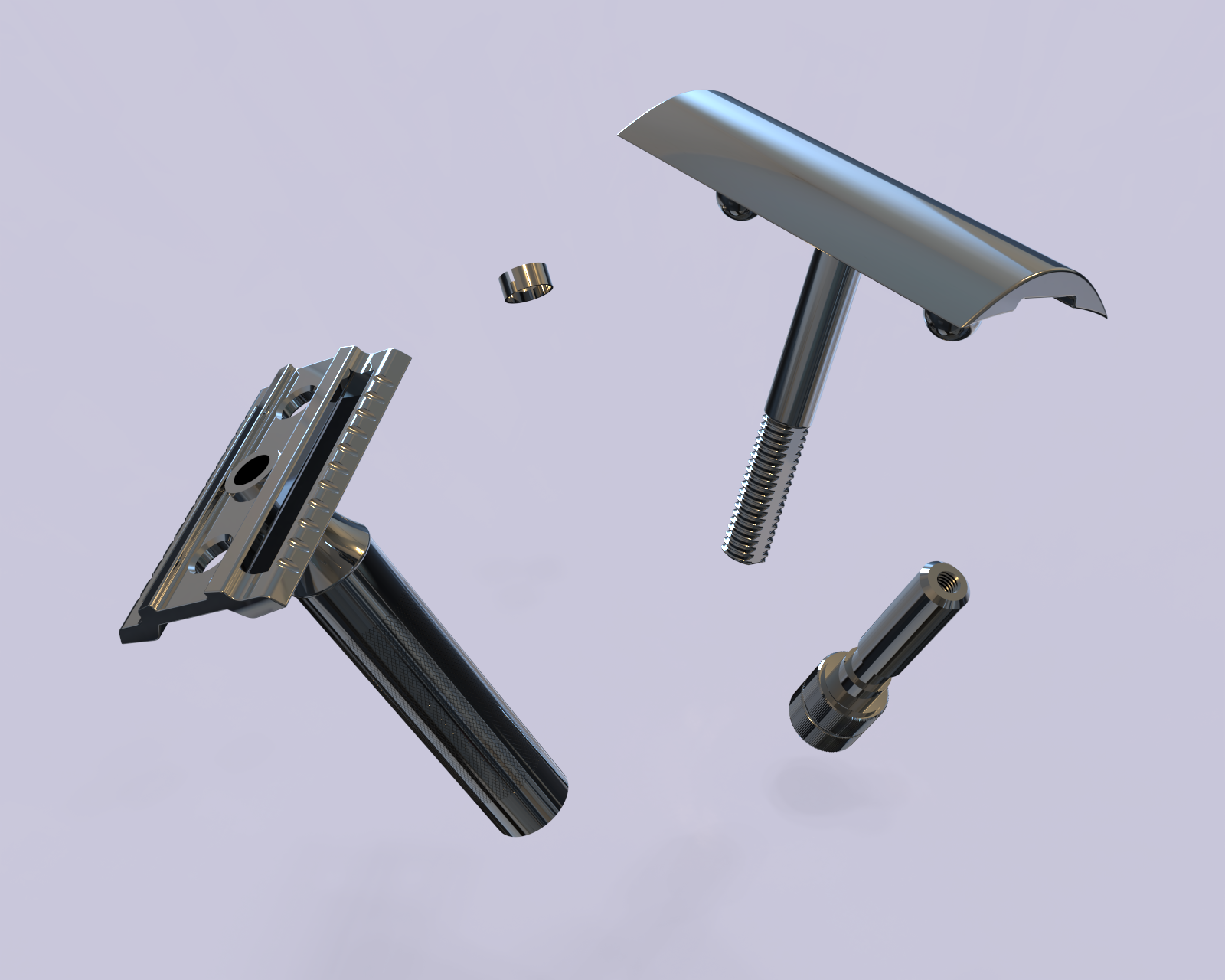

Consists of Four Main Components/Sub-Assemblies
- Retaining ring
- Tightening nut
- Top blade mount
- Handle/bottom blade mount
Model drawn in Fusion 360
All dimensions are within 200 microns (0.2 mm) of the original object
Component Gallery:

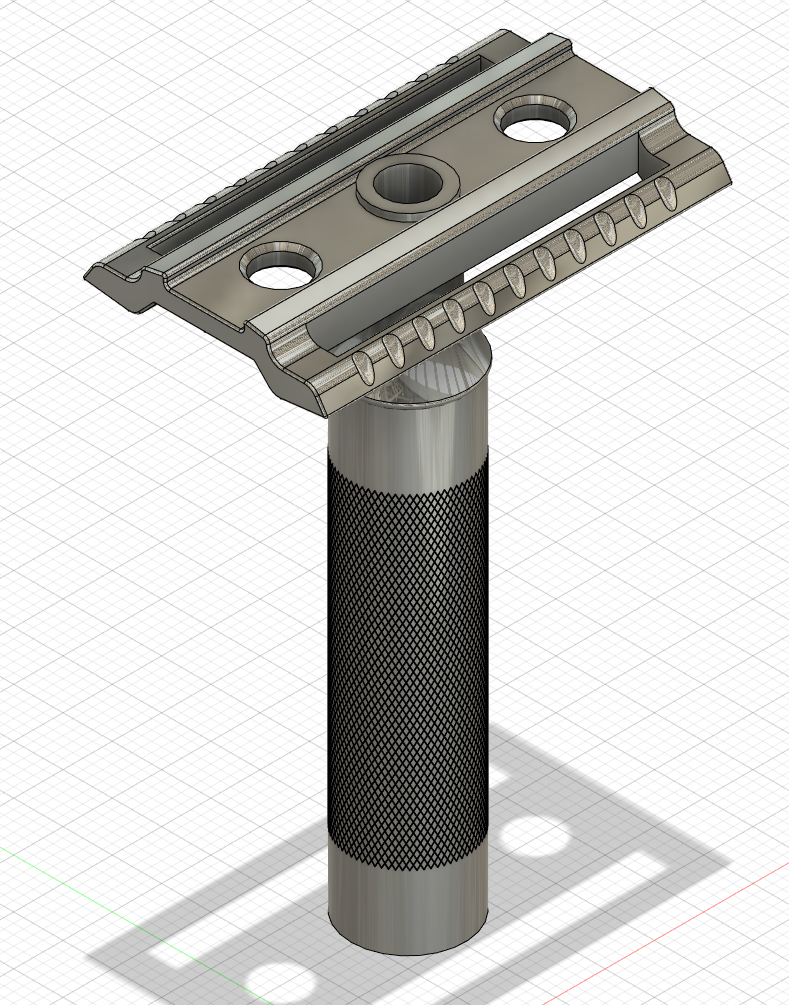

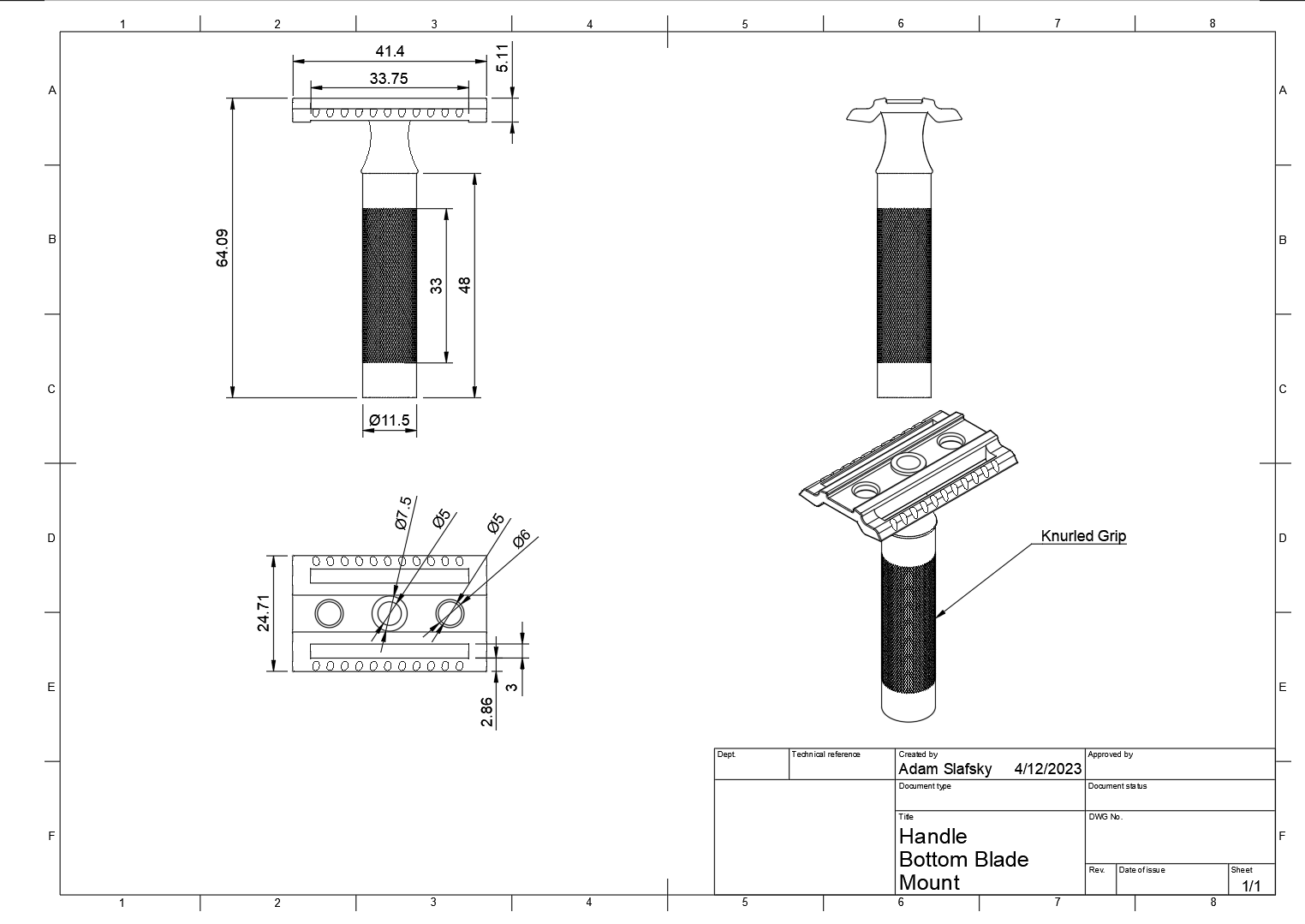

Sub-Assembly #1: Handle/Bottom Blade Mount

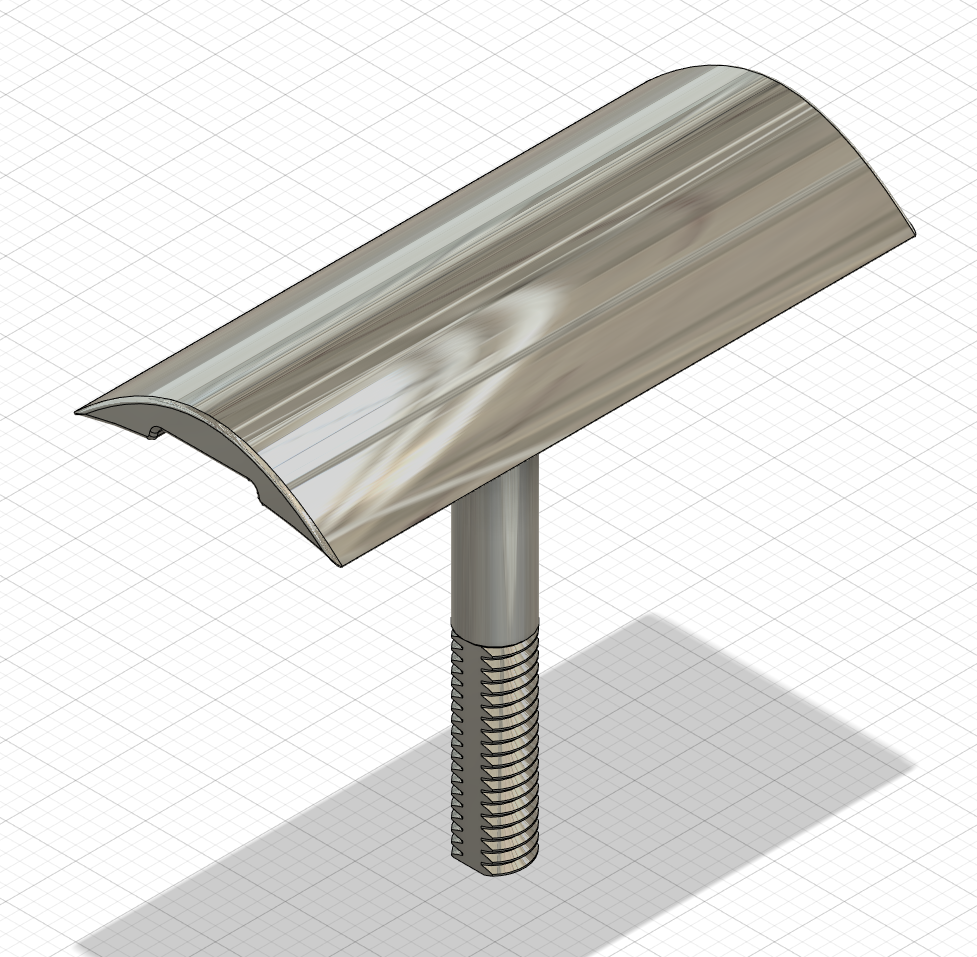

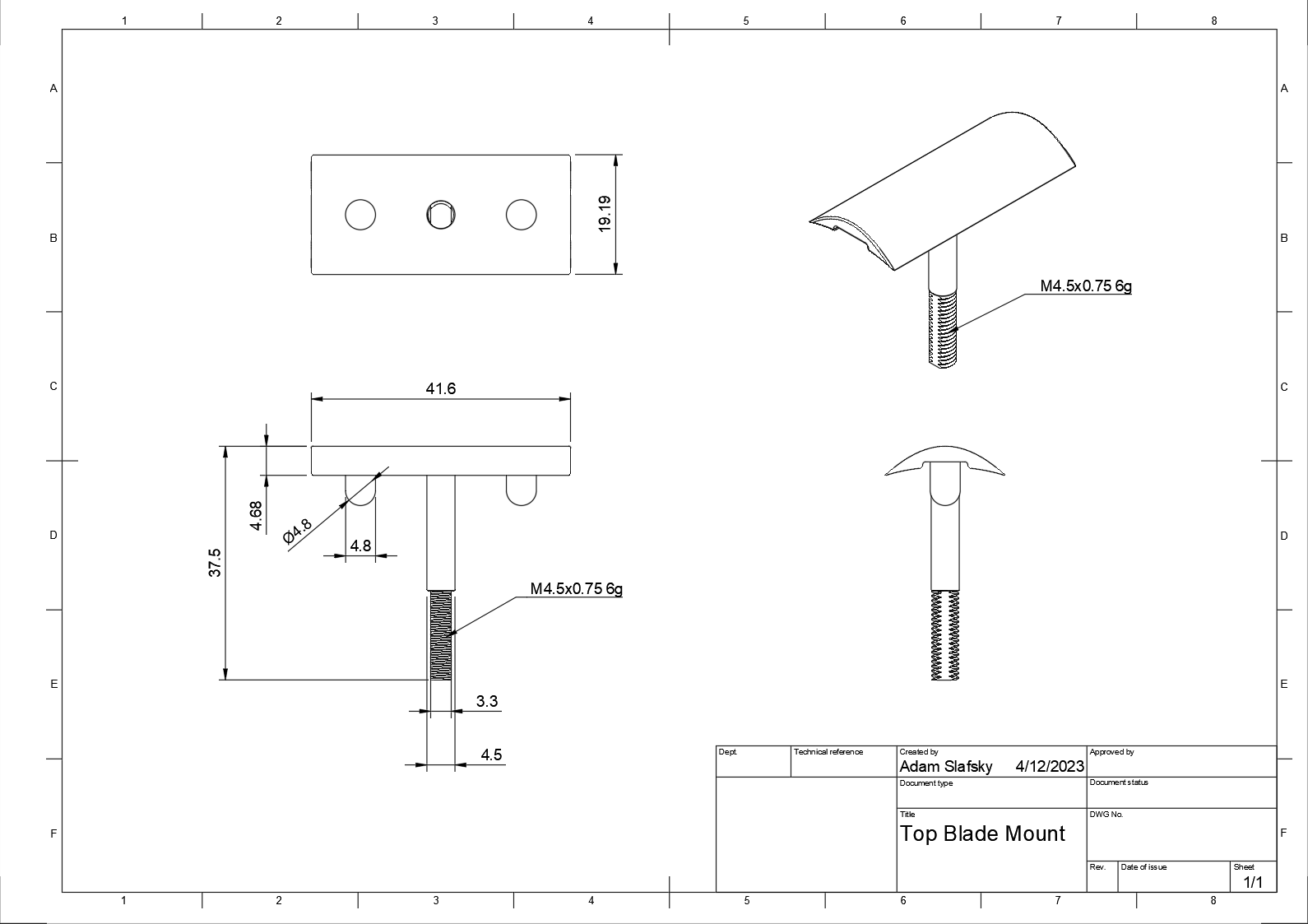

Sub-Assembly #2: Top Blade Mount

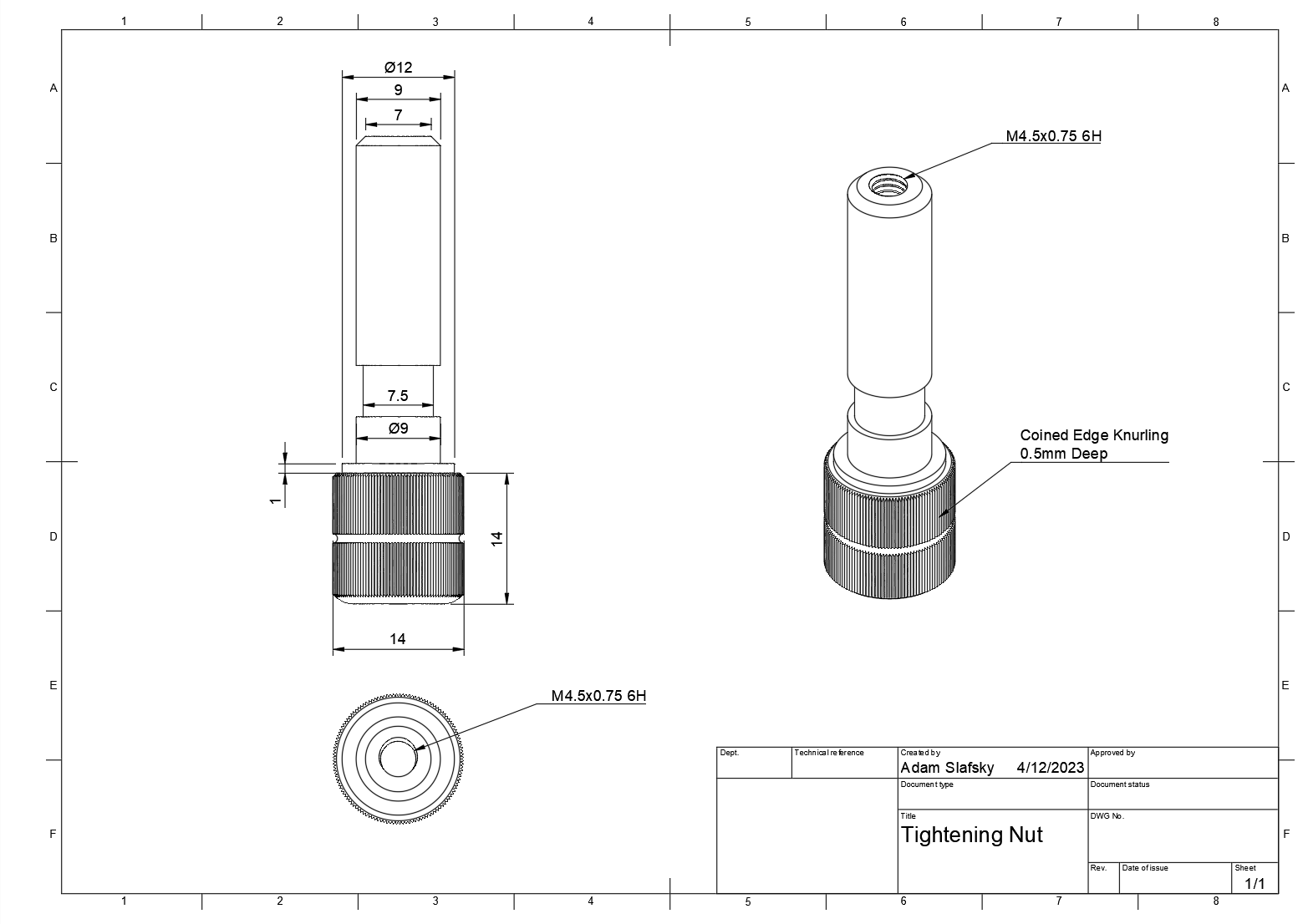

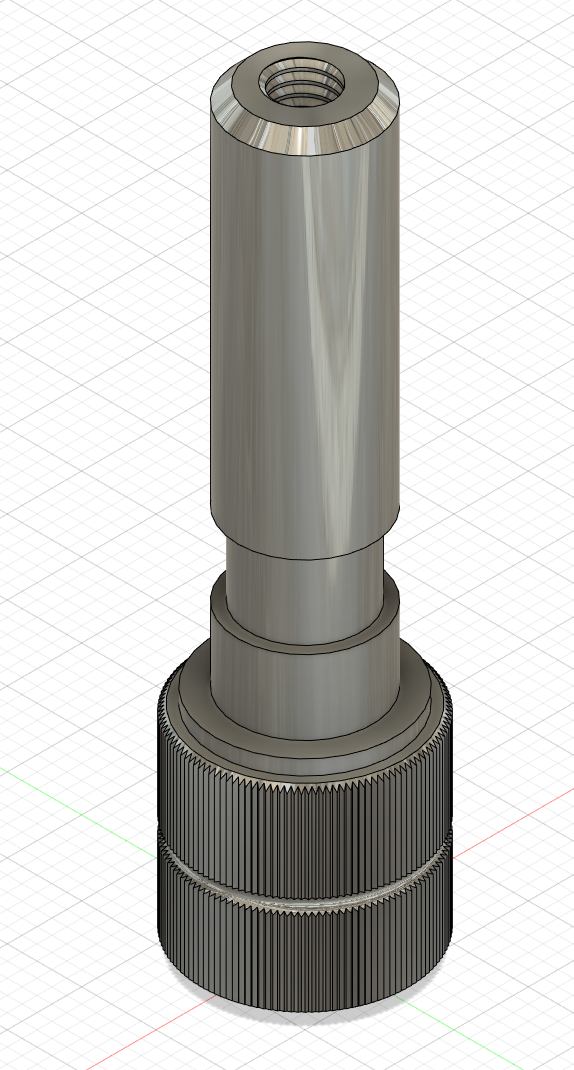

Sub-Assembly #3: Tightening Nut

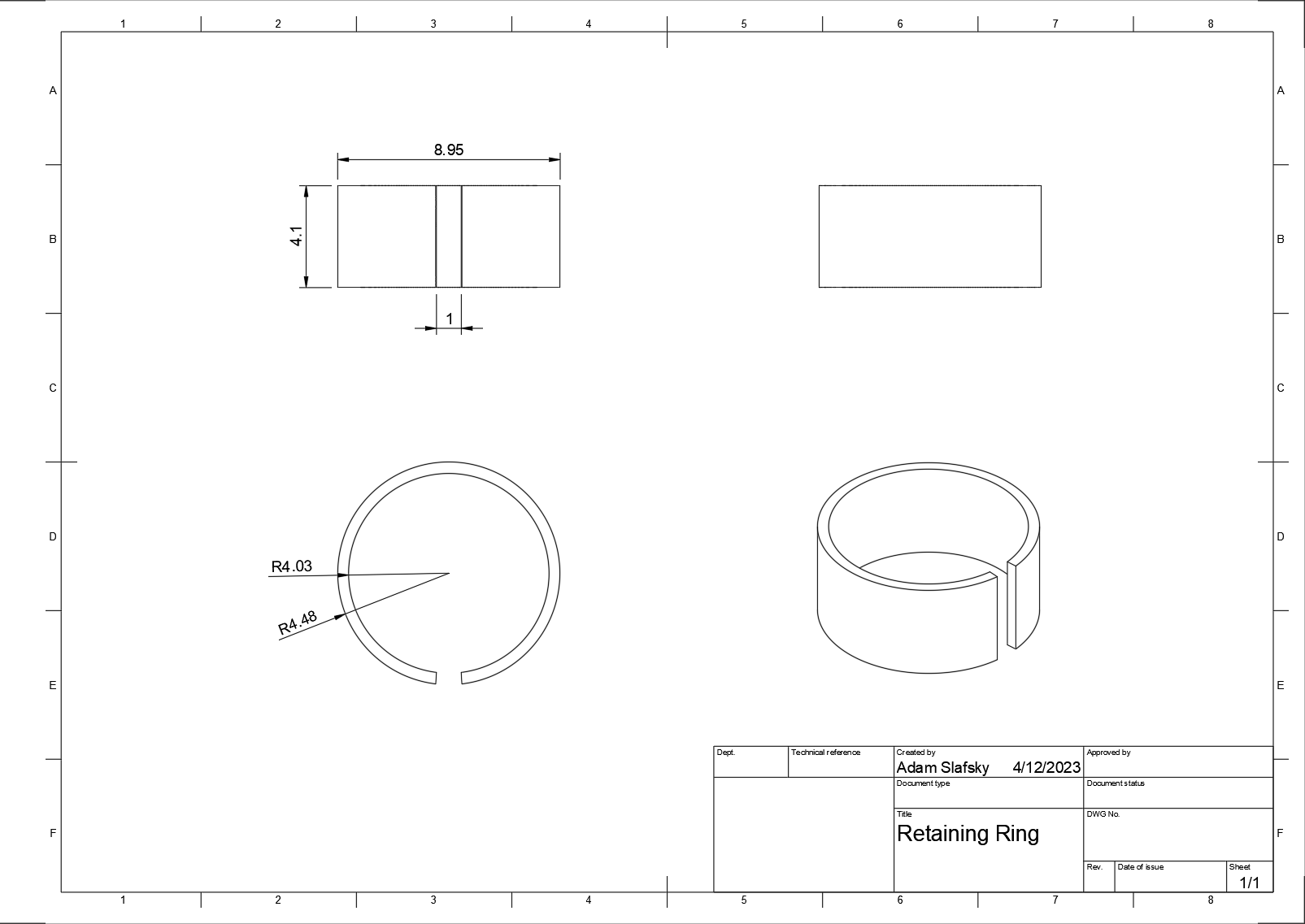

Component #4: Retaining Ring
